DC Contactor BZJ-400G

DC Contactor BZJ-400G

Categories
BZJ NC DC Contactor
Brand
Model
FOB Port
Ningbo,Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
08/11/2021
DESCRIPTION

■CONTACTOR DATA

Model

BZJ-400G/□

BZJ-400G/B□

Contact Form

1D (SPST-NC)

Contact Material

Ag Alloy

Contact Rating(at Resistive Load)

400A×48VDC(DC-1)

400A×72VDC(DC-1)

Contact Voltage Drop

 ≤80mV@400A

Insulation Resistance

Min. 100MΩ at 500VDC

Dielectric Strength

(Between Insulated Electric Parts)

1000VAC 50 HZ/60 HZ (1 minute) Leak current<1mA

Mechanical Endurance

100,000  Operations  (no load)

Electrical Endurance

6,000  Operations  (at rated load)

Working Duty

Continuous



■COIL DATA

Model

Coil voltage(V)

Coil Working volt.(V)

Pick-up Volt.(V)

Drop-out Volt.(V)

Starting current(A)

Maintain current(A)

BZJ-400G

12

0.85US~1.1US

≤70%

≥10%

≤11.5

≤0.8

24

≤5.5

≤0.4

48

≤5.5

≤0.15

60

≤4.5

≤0.15

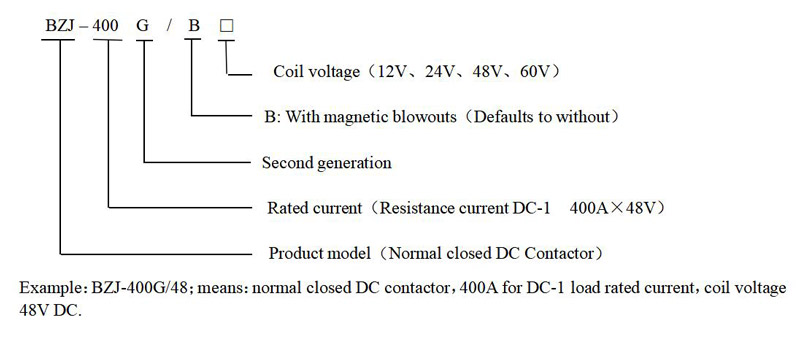

■Part Numbering System

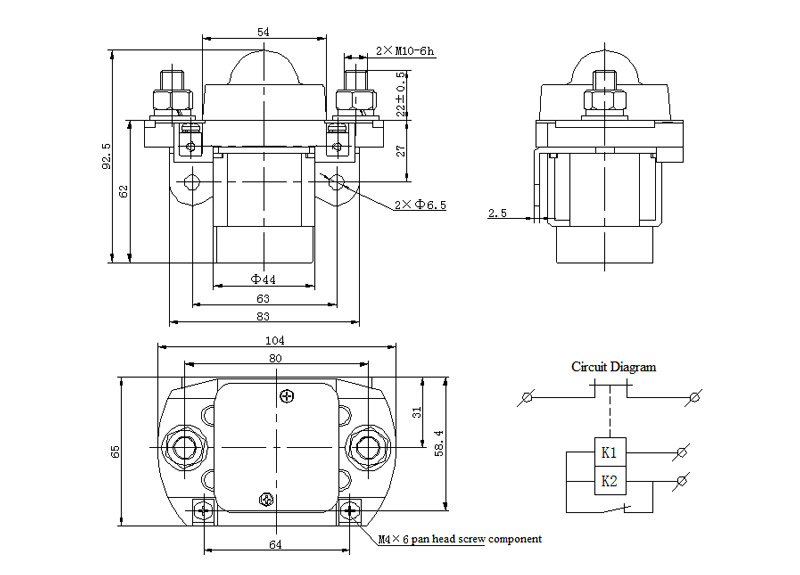

■Shape installation and circuit diagram

BZJ-400G   unit (mm)

Dimension(mm)

Tolerance grade not noted(mm)

0~30

±0.3

31~60

±0.5

61~100

±1

>100

±2



Remarks

  1. While assemble contactor, tighten torque of nut of terminal screw in main circuit is 10~13N.m;tighten torque of nut of terminal screw in control circuit is 1~1.5N.m。
  2. Driving circuit power for coil must be no less than coil power; otherwise, it will reduce cutting capacity of product.
  3. Continuous applied voltage should not exceed the maximum permission voltage. Otherwise, abnormal heating of coil will shorten the life of insulating coating.

This contactor is non-waterproof, please don’t use in water, solvent, oil and other environment that may contact with the shell or terminal. Otherwise, it may cause abnormal heating due to the burn-in of shell or corrosion, dirty of terminal.
