DESCRIPTION

Circuit Breaker BA series

Application

BA series circuit breaker for equipment (hydraulic-magnetic circuit breaker) is used in the power system with rated current up to 50A, rated voltage up to AC240/415V (50/60Hz) or DC80V. It provides overload, short circuit protection. It can also be used for infrequent close or open. The application fields are computer and peripheral equipment, industrial automatic control system, telecom equipment, power supply system, UPS, railroad, marine, spacecraft, elevator, portable power supply and so on.

Specification

2.1 Standards: IEC60934 , GB17701 , UL489A, UL1077,UL489
2.2 Rated working voltage: DC80V、 AC120/240、AC240/415V、AC250V、AC277/480Y
2.3 Mechanical/Electrical endurance: 10000/6000,(UL489A approved at electrical endurance: 1000)
2.4 Dielectric strength: the main circuit: 3000V, the auxiliary circuit: 1000V
2.5 Certificates: CCC, CE, TUV, VDE, UL1077, UL489A, UL489
2.6 Auxiliary contact: AC250V 5A
2.7 Rated breaking capacity Icn:

Rated voltage

(V)



Rated current

(A)

Number of poles

Breaking capacity (A)

TUV, CE, CCC

UL1077

UL489A

UL489

Icn

Inc

DC80

0.5-50

1,2,3

4000

5000

5000 U2

5000

/

AC250

0.5-50

1

4000

5000

/

/

/

AC415

0.5-50

2,3

4000

5000

/

/

/

AC120/240

0.5-50

1,2,3

/

/

5000 U2

/

5000

AC240

0.5-50

1

/

/

5000 U2

/

/

AC277/480Y

0.5-50

1,2,3

/

/

2000 U2

/

/

2.8  Resistance:

CURRENT(A)

RESISTANCE (DC)

RESISTANCE (AC)

CURRENT(A)

RESISTANCE (DC)

RESISTANCE (AC)

1

1.63

1.69

10

0.026

0.028

2

0.415

0.425

12.5

0.020

0.021

3

0.175

0.188

15

0.013

0.014

4

0.113

0.116

20

0.008

0.009

5

0.077

0.078

25

0.004

0.005

7.5

0.039

0.039

30

0.003

0.003

Notes: DCR and impedance based on 100% rated current applied and stabilized a minimum of one hour

 Tripping characteristic

4.1 Tripping timetable (in seconds)

Current

Curve

100%

125%

135%

150%

200%

400%

600%

1000%

DI

No trip

0.12max

/

0.1max

0.05max

0.022max

0.017max

0.017max

DS/YS

No trip

0.5-6.5

/

0.3-3

0.1-1.2

0.031-0.5

0.011-0.25

0.004-0.08

DM/YM

No trip

2-60

/

1.8-30

1-10

0.15-2

0.04-1

0.006-0.1

DL/YL

No trip

80-700

/

40-400

15-150

2-20

0.23-9

0.012-0.2

AI

No trip

0.12max

/

0.1max

0.05max

0.022max

0.017max

0.017max

AS/LS

No trip

0.7-12

/

0.35-7

0.13-3

0.03-1

0.015-0.3

0.008-0.1

AM/LM

No trip

10-120

/

6-60

2-20

0.2-3

0.02-2

0.01-0.25

AL/LL

No trip

50-700

/

30-400

10-150

1.5-20

0.4-10

0.13-0.5

HI

No trip

/

0.12max

0.1max

0.05max

0.023max

0.016max

0.015max

HS

No trip

/

0.44-10

0.3-7

0.1-3

0.03-1

0.012-0.3

0.004-0.1

HM

No trip

/

1.8-100

1.7-60

1-20

0.15-3

0.04-2

0.006-0.28

HL

No trip

/

50-600

30-400

10-150

1.8-20

0.22-10

0.011-0.5

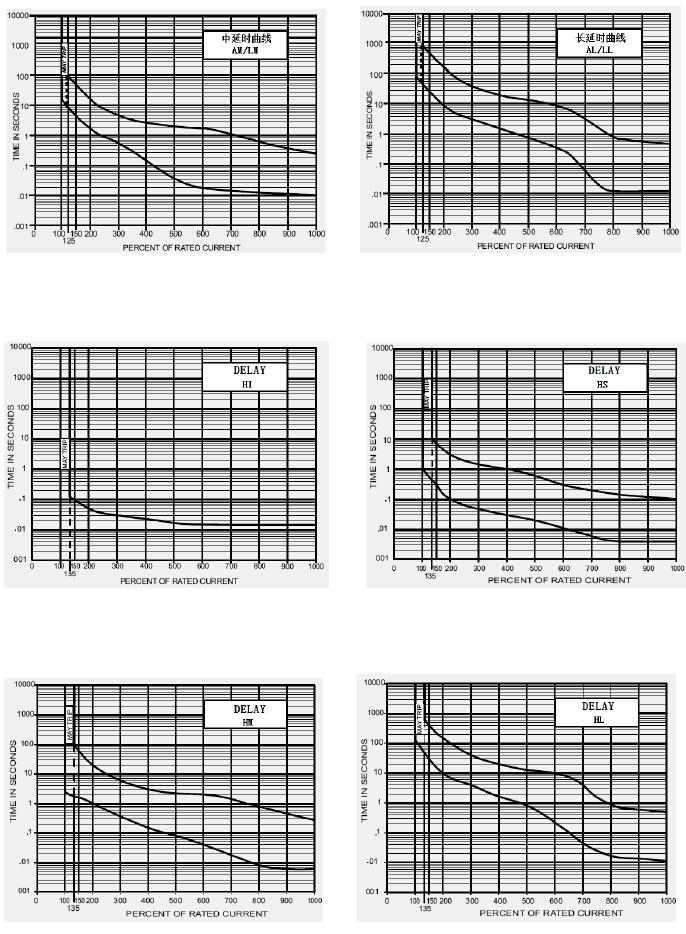

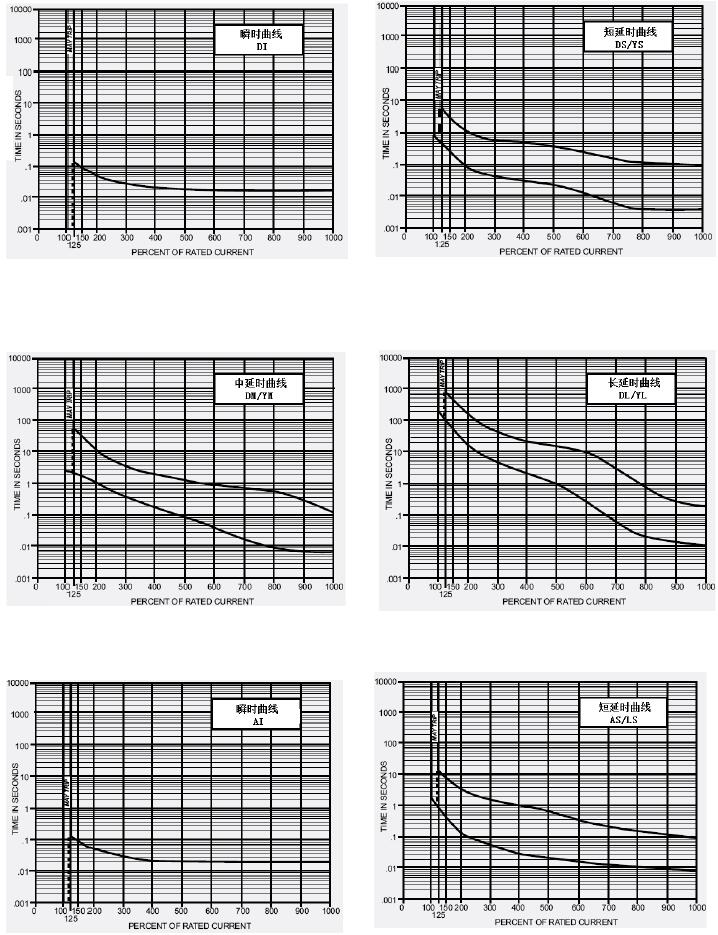

4.2 Tripping curves

ba circuit breaker for equipment chinaba circuit breaker for equipment supplier

Model and Implication

ba circuit breaker for equipment manufaturer

No.

Implication

BA

1

Product code

B:Circuit Breaker

2

Design code

A: Type Code

3

Circuit

A:Series trip (Current)  V: Series trip (Voltage)  T: Relay Trip  S:Switch

4

Actuator code

S:Long handle , One per Pole         L:Long Handle ,One per multiple unit

M: Mid Trip Handle  D:Short Handle    Y: Rocker Handle  R:Flat Rocker Handle

5

Number of Poles

1:One pole      2:Two poles     3:Three poles

6

Tripping curve

DI:DC Instantaneous      DS:  DC Short          DM:  DC Medium;      DL:  DC Long

YS:  DC Short,Hi-inrush   YM:  DC medium, Hi-inrush                      YL:  DC long, Hi-inrush

AI: AC Instantaneous     AS:AC Short            AM:AC Medium         AL: AC Long

LS:  AC Short, Hi-inrush  LM:  AC  Medium, Hi-inrush                    LL:  AC Long, Hi-inrush

HI: AC/DC Instantaneous  HS:   AC/DC Short      HM:  AC/DC  Medium;  HL:  AC/DC  Long

7

Rated current(A)

0.5~50

8

Mounting method

M:M3 screw mounting;  U:6-32UNC screw mounting;  Q:Snap-in face plate adapter

9

Wiring method

NO or H: Solder-in/ Q.C.tab type  B: Push-in stud wiring  P: M4 Screw type wiring

   E: 8-32UNC Screw type wiring  J: 8-32UNC Screw wiring with upturned lugs

   R: M4 Screw wiring with upturned lugs     L : M5 Screw type wiring

   G:10-32UNC Screw type wiring                  F:M5 Screw wiring with upturned lugs                 K:10-32UNC Screw wiring with upturned lugs

10

Actuator & legend color

Actuator color

I-O

ON-

OFF

Dual

Legend Color

Dual Rocker

Color

I-O

ON-OFF

Dual

White

A

B

1

Black

White

E

Y

U

Black

C

D

2

White

Red

I

Z

V

Red

F

G

3

White

Green

O

0

W

Green

H

J

4

White

Yellow

T

9

X

Blue

K

L

5

White









Yellow

M

N

6

Black









Gray

P

Q

7

Black









Orange

R

S

8

Black









11

Indicate Direction

With current rating :A, Vertical;   B, Horizontal; C, Indicate On Vertical Legend; D,  Horizontal On Vertical Legend; E, Indicate Off Vertical Legend ;F,Horizontal Off Vertical Legend    G:Indicate Off Vertical Legend with guard ;

Without current rating :1, Vertical;   2,Horizontal; 3, Indicate On Vertical Legend ;4,  Horizontal On Vertical Legend; 5,Indicate Off Vertical Legend ;6, Horizontal Off Vertical Legend;    7,Indicate Off Vertical Legend with guard ;

12

Accessory code

0:No accessory;1:Auxiliary Switch ;2:Trip Alarm Switch;  A:Barrier

13

Certificate code

E :CCC、 UL1077、CSA、TUV;    T: CCC、 UL489A、TUV;  J: CCC、 UL489、TUV;

14

Suffix code

Identification number  (Additional option)   Five or more numeric digits, for different variations  which is cross referenced to product ordering codes in option

Dimensions and wiring method

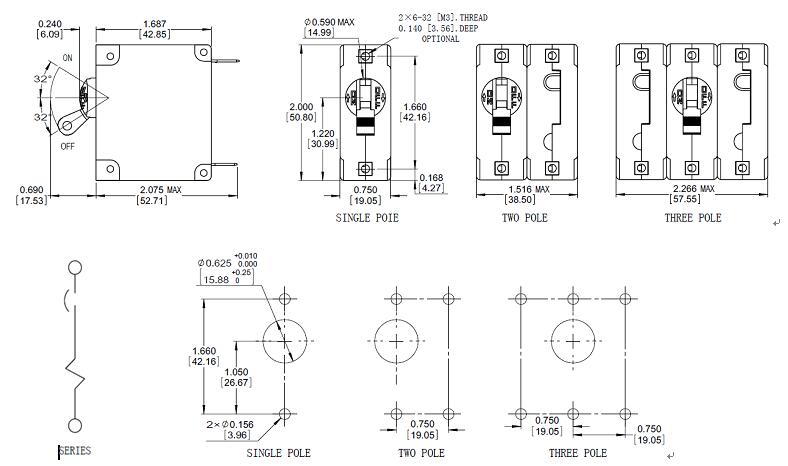

6.1  Toggle handle , Actuator code “ L”, Mounting method “ M/U”, Outline dimensions  (Tolerance ±0.02in[.51mm] Unless noted), Mounting dimension (Tolerance ±0.005in[.13mm] Unless noted)

ba circuit breaker for equipment for sale

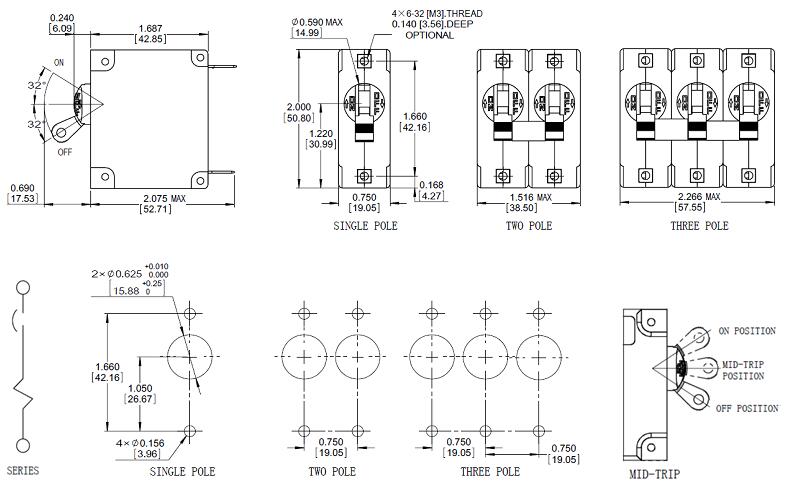

6.2  Toggle Handle,Actuator code “ S”, Mounting method “ M/U”,Outline dimensions  (Tolerance ±0.02in[.51mm] Unless noted), Mounting dimension (Tolerance ±0.005in[.13mm] Unless noted)

ba circuit breaker for equipment Dimensions and wiring method

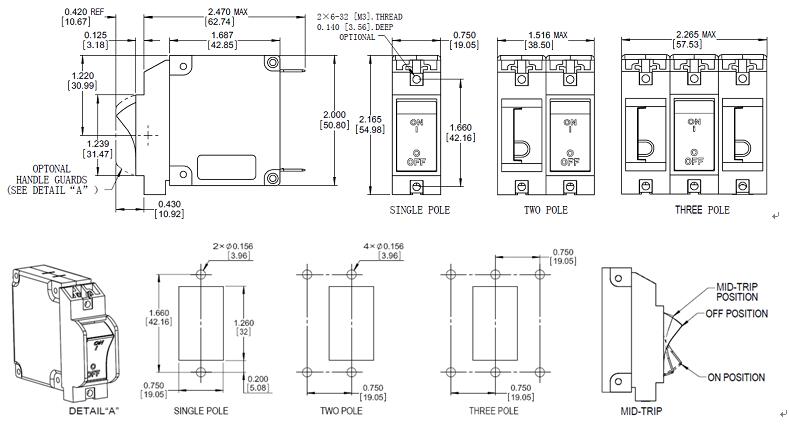

6. 3  Rocker Handle,Actuator code “ Y”, Mounting method “M/U”;    Outline dimensions  (Tolerance ±0.02in[.51mm] Unless noted); Mounting dimension (Tolerance ±0.005in[.13mm] Unless noted)

ba circuit breaker for equipment Dimensions and wiring method china

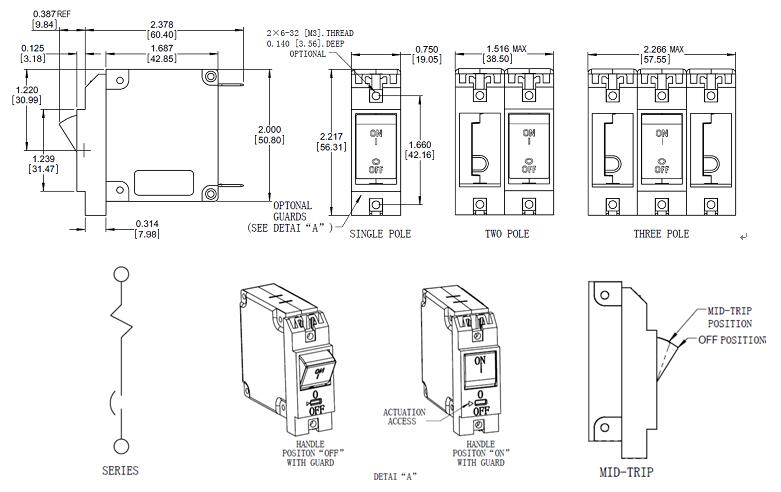

6.4  Flat Rocker Handle, Actuator code “ R”, Mounting method“M/U”;   Outline dimensions  (Tolerance ±0.02in[.51mm] Unless noted); Mounting dimension (Tolerance ±0.005in[.13mm] Unless noted)

ba circuit breaker for equipment Dimensions and wiring method supplier

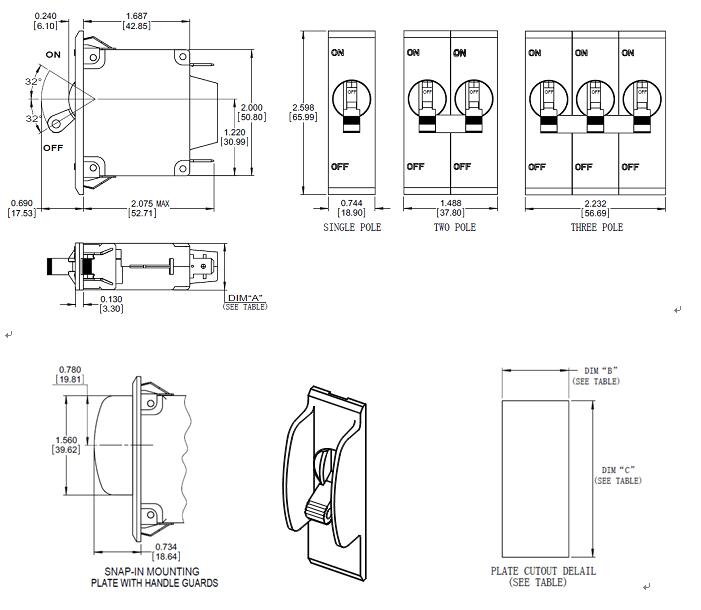

6.5  Toggle Handle, Actuator code “ S”, Mounting method “ Q”; Outline dimensions  (Tolerance ±0.02in[.51mm] Unless noted), Mounting dimension (Tolerance ±0.005in[.13mm] Unless noted);

ba circuit breaker for equipment Dimensions and wiring method manufacturer

3

2.266MAX

[57.55]

2.270MIN

[57.66]

2.180±0.005

[55.37±0.13]

2.186±0.011

[55.52±0.28]

2

1.516MAX

[38.50]

1.520 MIN

[38.61]

1

0.750 MAX

[19.05]

0.755 MIN

[19.18]

0.040-0.059

[1.02-1.50]

0.060-0.100

[1.52-2.54]

POLE

DIM“A”

DIM“B”

PANEL THICKNESS

DIM“C”

 Auxiliary and Alarm Switch

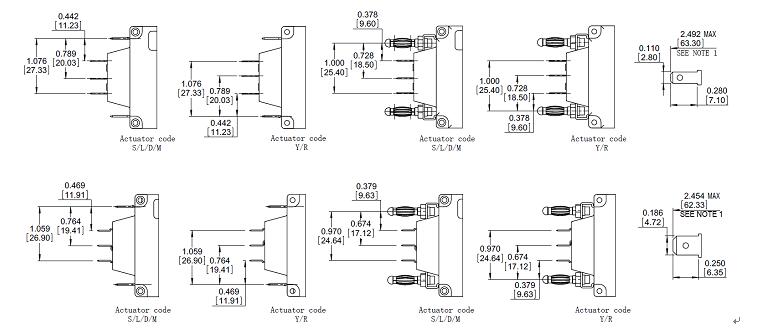

7.1  Outline dimensions  (Tolerance ±0.02in[.51mm] Unless noted)

ba circuit breaker for equipment Auxiliary and Alarm Switch

NOTE1:
1: Dimensions That Reference This Note Are Taken From Back of Mounting Panel.

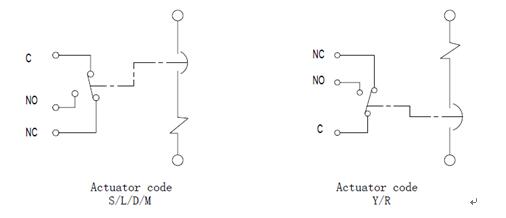

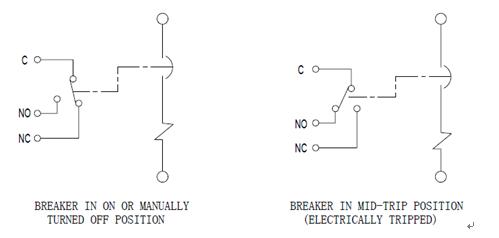

7.2  Auxiliary Switch Circuit diagram

ba circuit breaker for equipment NOTE1

7.3  Alarm Switch Circuit diagram

ba circuit breaker for equipment NOTE1 china

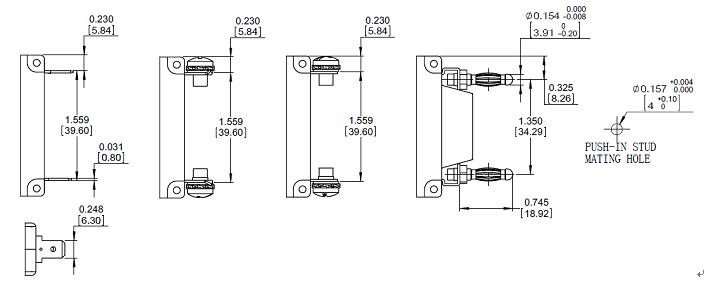

Wiring method and dimension (Tolerance ±0.03in[0.8mm] Unless noted)

Wiring method

H(≤35A) J/R(≤30A)/F/K   P/E(≤30A)/L/G      B

ba circuit breaker for equipment Wiring method and dimension Tolerance ±0.03in 0.8mm Unless noted

Note:During wiring, applied torque on each type screw is shown in following table:

Diameter of screw (mm)

Applied torque (N.m)

M3(6-32) Mounting Screw

0.5

M4(8-32)  Screw

1.2

M5(10-32) Screw

2.0

Packing and depositing

The products should be stored in the warehouse where there are ventilation. The relative humidity there should not exceed 80%, and the ambient temperature there is between -25℃ to +60℃. In addition, there should not be acidic, alkaline and corrosive gas in the air. The products should not be deposited more than 3 years in the above mentioned conditions since the producing date.

Notice
10.1 Do not disassemble the breaker privately.
10.2 Attention to live part when the breaker is energized and avoid touching them.
10.3 Please make sure reliable connection to avoid fault tripping or damage of terminal caused by exceptional heat resulting from unsuitable connection.
10.4 Please maintain the distance of 45mm from the arc jet slot of the product (LINE side) when installation in case there is short circuit breaker due to arc jet.
10.5 The breaker should be mounted within 5° of the mounting plane in case the characters of the product are affected.
10.6 The fasten torque of screw is 0.5N.m.
