Circuit Breaker BD series
Application Scope
BD series circuit breaker for equipment (hydraulic-magnetic circuit breaker) is used in the power system with rated current from 0.5A to 63A, parallel connection to 150A, with rated voltage up to AC120/240V、AC230/400V、AC277/480V (50/60Hz) or DC80V、DC125V、DC250V. It provides overload, short circuit protection. It can also be used for infrequent close or open. The application fields are computer and peripheral equipment, industrial automatic control system, telecom equipment, power supply system, UPS, railroad, marine, spacecraft, elevator, portable power supply and so on.
Technical Parameters
|
Voltage(V) |
Rated current (A) |
Poles |
Breaking capacity (A) |
||||
|
UL |
CCC/TUV/CE |
||||||
|
UL1077 |
UL489 |
UL489A |
Icu |
Ics |
|||
|
DC80 |
0.5-63 |
1,2(series) |
10U2 |
10 |
10 |
10 |
5 |
|
15~100 |
2(Parallel) |
10U2 |
/ |
10 |
10 |
5 |
|
|
50~150 |
3(Parallel) |
10U2 |
/ |
10 |
10 |
5 |
|
|
DC125 |
0.5~63 |
2(series) |
5 U2 |
/ |
10 |
10（1P,2P） |
5（1P,2P） |
|
DC250 |
0.5~15 |
3(series) |
10 U2 |
/ |
10 |
10（2P,3P） |
5（2P,3P） |
|
AC120/240 |
0.5~25 |
1,2,3 |
10 U2 |
10 |
/ |
/ |
/ |
|
AC240/415 |
0.5~50 |
1,2,3,1N,3N |
/ |
/ |
/ |
6 |
3 |
|
AC277/480 |
0.5~25 |
1,2,3,1+N, |
1U1 |
/ |
/ |
/ |
/ |
Standard Working Condition
3.1 Ambient temperature:：-40℃~+85℃, Avg. temperature of 24 hours: ≤+35℃.
3.2 Altitude：≤2000m
3.3 Relative humidity：The relative humidity of the air does not exceed 50% at the maximum temperature of +40℃. Higher relative humidities may be permitted at lower temperature, e.g. 90% at +20℃.
3.4 Service place should be without explosive media, gas and dust which are corrosive and conductive. The product should be mounted free from rain and snow.
3.5 Pollution degree: 2
3.6 Installation type: Ⅱ
Tripping characteristic
4.1 Tripping Time
|
Current Curve |
1.05In |
1.3 In |
1.3*1.05In |
1.5In |
2 In |
3 In |
4 In |
6 In |
10 In |
|
DI/AI |
No trip |
0.003-0.2 |
0.003-0.18 |
0.003-0.06 |
0.003-0.025 |
0.003-0.02 |
0.003-0.02 |
0.003-0.02 |
0.003-0.02 |
|
DS/AS |
No trip |
8-240 |
7-200 |
5-50 |
2-12 |
0.09-4 |
0.006-1.8 |
0.003-0.03 |
0.003-0.02 |
|
YS/LS |
No trip |
11-300 |
11-250 |
8-80 |
4-25 |
1.2-8 |
0.6-3.5 |
0.1-1.1 |
0.004-0.3 |
|
DM/YM |
No trip |
12-240 |
11-200 |
10-65 |
4.5-20 |
1.2-7 |
0.6-3 |
0.01-1 |
0.003-0.1 |
|
AM/LM |
No trip |
20-600 |
18-540 |
15-120 |
7-40 |
2.5-12 |
1-6 |
0.01-1.8 |
0.003-0.09 |
|
DL/AL |
No trip |
60-1500 |
58-1200 |
45-420 |
20-90 |
8-40 |
3.8-20 |
1-7 |
0.005-2 |
|
LL/YL |
No trip |
60-1500 |
58-1200 |
40-360 |
20-90 |
6-35 |
3.5-18 |
1.2-7 |
0.1-2 |
Note：
1)Time unit is second；
2) As Standard, the time listed is tested at the product cold state.
4.2 Tripping Curves
Model and Implication
|
No. |
Series |
ＢD |
|
1 |
Product code |
B：Hydraulic electromagnetic circuit breaker |
|
2 |
Series Code |
D：Maximum 63A |
|
3 |
Tripping curve |
DI:DC Instantaneous DS:DC Short DM:DC Medium; DL:DC Long AI:AC Instantaneous AS:AC Short AM:AC Medium; AL:AC Long YS:DC Short，Hi-Inrush YM:DC Medium，Hi-Inrush YL:DC LONG，Hi-Inrush LS:AC Short，Hi-Inrush LM:AC Medium，Hi-Inrush LL:AC LONG，Hi-Inrush |
|
4 |
Rated current (A) |
0.5～150A |
|
5 |
Number of poles |
1– One Pole(1P or 1N);2 – Two Pole(2P or 2U);3– Three Pole(3P or 3N or 3U) |
|
6 |
Pole and Connection Type |
P: Phase pole only of series (1P or 2P or 3P), N: With neutral pole of series (1N or 3N), U: parallel, with parallel connection bar(2U or 3U) |
|
7 |
Accessory |
O:No accessory, A:Auxiliary Switch, T:Trip Alarm; B: Auxiliary Switch & Trip Alarm; |
|
8 |
Mounting type |
D:57mm Escutcheon; M:57mm Escutcheon with plug-in; E:45mm Escutcheon; N:45mm Escutcheon with plug-in; |
|
9 |
Client code |
XXXXX 5 or more numbers or letters, different customers with special needs, but does not affect the product certification Using the client code, you can omit the fifth behind the content. |
Note:
1）Max rated current for single pole is 63A;
2）Only AC type for 3P+N & 3P products;
3）Rated current for parallel connection of 2 Poles for DC type is 100A，while max 150A for 3 poles parallel connection . AC type products cannot be parallel connected.
4) The models listed are the standard model which can be ordered according to the parameters listed; for nonstandard products, please confirm for the manufacturer.
Dimensions and wiring method
6.1 Outline dimensions

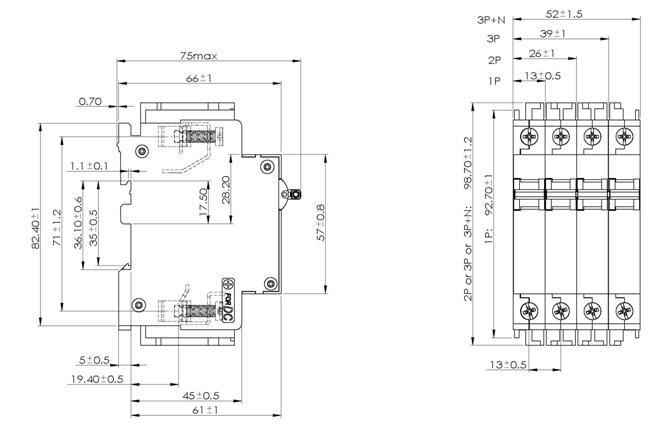

6.1.1 57mm Escutcheon

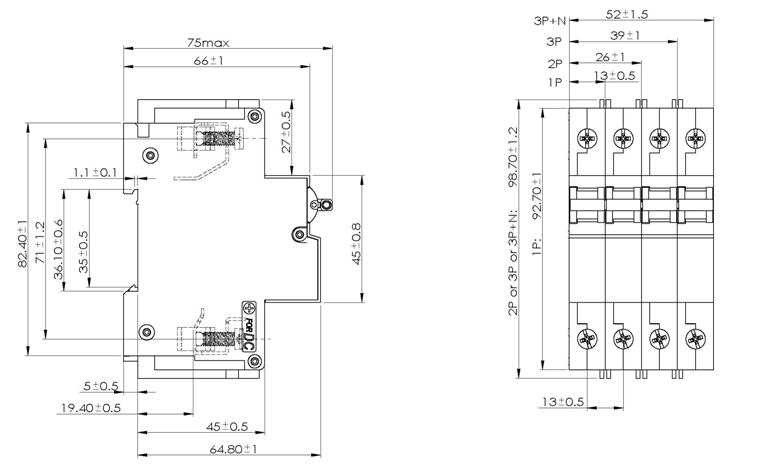

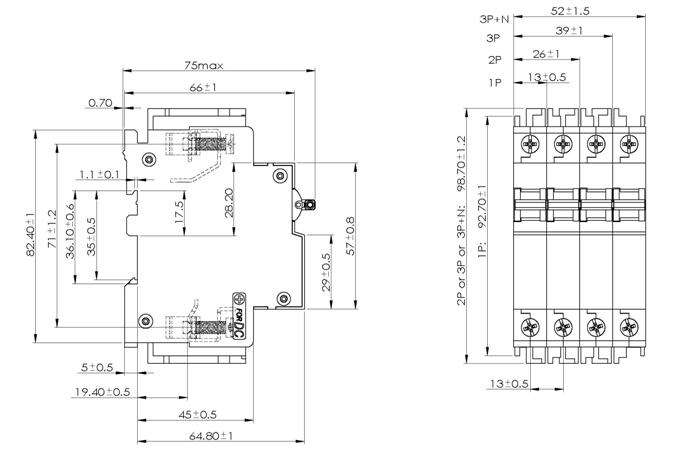

6.1.2 57mm Escutcheon with plug-in
6.1.3 45mm Escutcheon

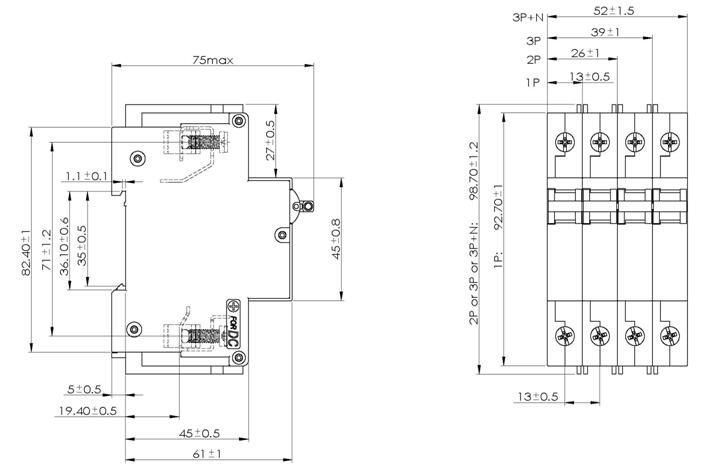

6.1.4 45mm Escutcheon with plug-in

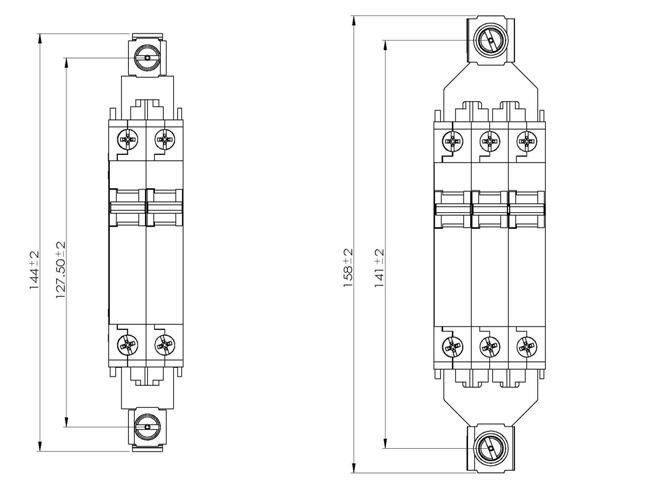

6.2 Parallel product appearance size

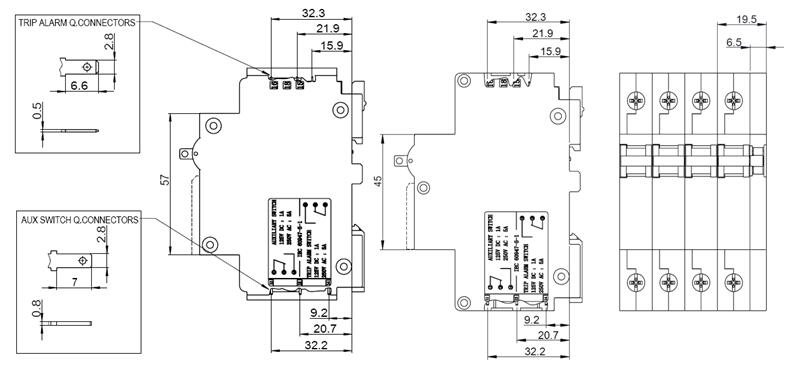

6.3 Attachment installation size
Packing and depositing
The products should be stored in the warehouse where there are ventilation. The relative humidity there should not exceed 80%, and the ambient temperature there is between -40℃ to +85℃. In addition, there should not be acidic, alkaline and corrosive gas in the air. The products should not be deposited more than 3 years in the above mentioned conditions since the producing date.
Notice
8.1 Do not disassemble the breaker privately.
8.2 Attention to live part when the breaker is energized and avoid touching them.
8.3 Please make sure reliable connection to avoid fault tripping or damage of terminal caused by exceptional heat resulting from unsuitable connection.
8.4 Please maintain the distance of 30mm from the arc jet slot of the product (LINE side) when installation in case there is short circuit breaker due to arc jet.
