DH150-300 High Voltage DC Contactor
Brand
Model
DH200L
FOB Port
Ningbo,Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
01/16/2020
DESCRIPTION
■ FEATURES

·200A Contact switch capacity, Small volume;
·This series covers both polar and non-polar series.Polar type has a set of bridge N.O. contacts,contact circuit has "+" "-" polarity.
Non-polar type contact circuit is non-polar and can be connected in any direction.
·Coil power is very low,coil maintain power Max 1.8W;
·Application:Telecom equipment、Solar system、 Engineering machinery、Electromobile、Electric vehicle、Charging system、Train、Ships、UPS etc.;
·Safety Approvals:UL、CE、 CCC
·Comply with the ROHS

■ SPECIFICATION

Product No.

DH200

Contact type

1H(SPST-NO)

Rated load current of contact(Resistive load)

200A(DC-1)

The max switch current

2000A(320VDC) 1time

Contact voltage drop

≤80mV@200A

Switching voltage

12~900V DC

Standard pick-up time

Max. 30ms.

Contact bounce time

Max. 5ms.

Release time

Max. 10ms.

Vibration(Sinusoid、80~2000HZ、peak)

(80~2000)HZ,≤5g

Shock(11ms,1/2 Sinusoid、peak、pick-up)

≤20g

Operating ambient temperature

-40℃~+85℃

Relative humidity

20%~90% RH

Insulation resistance

Min. 100MΩ @ 500VDC

Dielectric strength

(Between Insulated Electric Parts)

2200VAC 50 Hz/60 Hz (1 minute)

1000VAC 50Hz/60Hz (1 minute)(between aux contacts)

Leak current<1mA

Electrical life

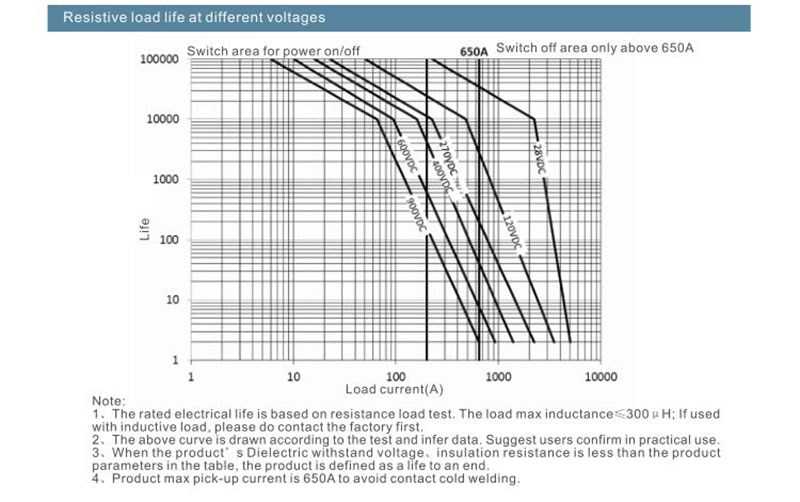

Please refer to diagram of resistance load life

Mechanical life

300,000 times

Aux. contact type

1NO

Rated load of aux. contact

2A/24V

Min. load of aux. contact

100mA/8V

Mounted direction

Any direction

Pollution level

Working duty

Continuous

Weight

0.45kg

■ Coil data

P/N

Coil voltage(V)

Coil operating voltage(V)

Pick-up voltage(V)

Release voltage(V)

Coil Power(W)

DH200

12

0.85US~1.2US

≤9

≥1

12~15

24

≤18

≥2

48

≤36

≥4

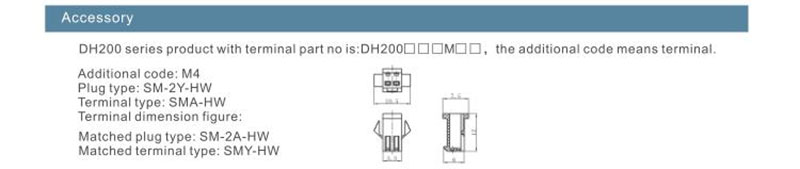

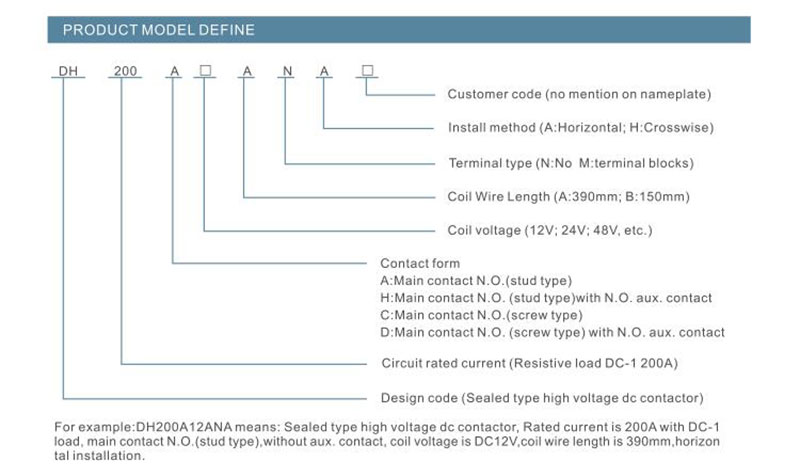

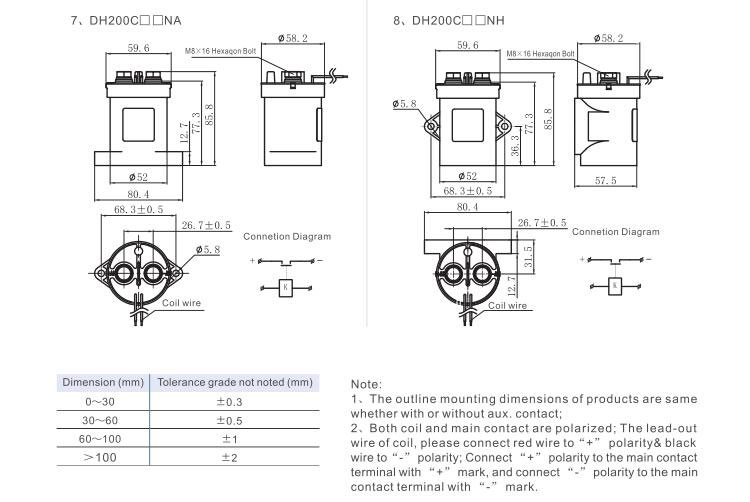

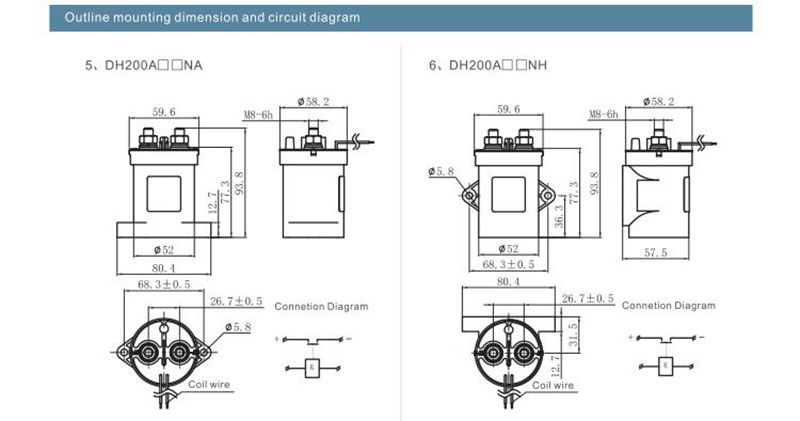

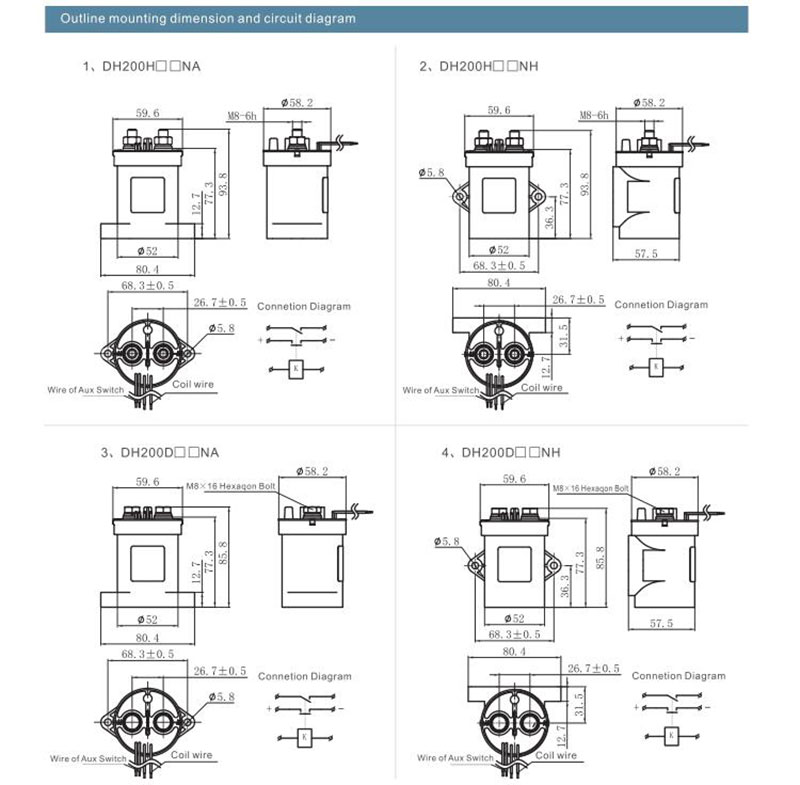

high voltage dc contactor dh200 chinahigh voltage dc contactor dh200 supplierhigh voltage dc contactor dh200 manufacurerhigh voltage dc contactor dh200 for salehigh voltage dc contactor dh200  outline mounting dimension and circuit diagramhigh voltage dc contactor dh200  outline mounting dimension and circuit diagram china
