Installing a shunt correctly is just as important as selecting the right one. A precision shunt can deliver excellent accuracy on the bench, but poor installation—wrong connection method, inadequate torque, or a poor mounting location—can introduce measurement errors far larger than the shunt's own tolerance. This guide covers the practical steps for installing a shunt in a DC current measurement circuit, with emphasis on the four-wire (Kelvin) connection that separates an accurate measurement from a misleading one.
Why Installation Method Matters
A shunt works by producing a small voltage drop—typically 50mV, 75mV, or 100mV at rated current—that is proportional to the current flowing through it. The measurement system reads this voltage and calculates current.
The voltage drop across a shunt at rated current is small. For a 500A, 50mV shunt, the resistance is only 100 µΩ. At the sense terminals, the signal is 50mV. Any additional resistance in the measurement path—from a terminal screw, a wire lug, or a poor contact—adds to the measured voltage and corrupts the reading.
This is why the connection method matters more for shunts than for almost any other component in the circuit. A contact resistance of just 0.1 mΩ in the measurement path, compared to a 100 µΩ shunt, represents a 100% error at full scale.
The Four-Wire (Kelvin) Connection
The single most important installation principle for a shunt is the four-wire, or Kelvin, connection.
How It Works
A four-wire connection separates the current-carrying path from the voltage-sensing path:
- Current path: The heavy load current flows through the two large terminals (and the shunt body between them).
- Voltage sense path: Two separate small terminals connect to the measurement instrument (voltmeter, ADC, or BMS input).
The sense terminals are connected directly to the shunt element, at points inside the current path, not at the current-carrying terminals. This means the voltage measured is only the drop across the shunt element itself—not the drop across the terminal connections, lugs, or mounting hardware.

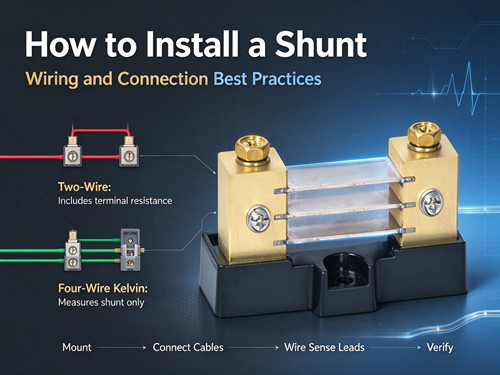

Two-Wire vs. Four-Wire: The Difference
| Connection Method | What It Measures | Error Source |
|---|---|---|
| Two-wire | Voltage drop across shunt plus terminal and lug resistance | Contact resistance adds directly to the reading |
| Four-wire (Kelvin) | Voltage drop across shunt element only | Contact resistance excluded from measurement |
In a two-wire connection, the measurement leads are connected to the same terminals that carry the load current. The contact resistance at those terminals—which can be tens of micro-ohms and varies with torque, oxidation, and temperature—is included in the measured voltage. At a 50mV full-scale signal, even 0.5 mΩ of contact resistance produces a significant error.
In a four-wire connection, the sense leads connect to dedicated sense terminals that carry no load current. The contact resistance at the current terminals does not appear in the measurement.
Wiring the Sense Leads
The sense leads should be:
- Separate from the current-carrying cables: Do not tap the sense signal from the middle of a heavy cable lug.
- Connected directly to the sense terminals: Use the small terminals provided on the shunt body.
- Twisted pair: Twist the two sense wires together to reduce pickup of electromagnetic interference.
- Shielded if the environment is noisy: For long runs or high-EMI environments, use shielded twisted pair and ground the shield at one end only.
Step-by-Step Installation
Step 1: Choose the Mounting Location
Mount the shunt where it will be accessible for inspection and where it will not be exposed to excessive heat. Shunts dissipate power (I²R), so they generate heat during operation. Mounting near other heat sources or in a poorly ventilated enclosure raises the shunt's operating temperature, which affects accuracy through temperature drift.
For high-current shunts, mount on a metal surface that can act as a heat sink if the manufacturer specifies it. Maintain clearance around the shunt for air circulation.
Step 2: Mount the Shunt Securely
The shunt body should be mounted so that the current terminals are not stressed by cable weight or vibration. Use the mounting holes provided. For high-current installations, the shunt may be bolted directly to a busbar—in this case, ensure the busbar surface is clean and flat so that the contact area is maximized.
Step 3: Connect the Current-Carrying Cables
Connect the heavy load cables to the large current terminals. Observe the following:
- Clean the terminal surfaces: Remove oxidation and contamination before connecting.
- Use the correct lugs: The lug should match the terminal stud size and the cable gauge.
- Torque to specification: Use a calibrated torque wrench. Under-torque creates resistance; over-torque can damage the terminal.
- Observe current direction if marked: Some shunts have a marked current direction. If the shunt is marked, connect so that current flows in the indicated direction.
Step 4: Connect the Sense Leads
Connect the two sense leads to the small sense terminals on the shunt body.
- Polarity matters: The sense leads have a defined polarity. The positive sense lead connects to the terminal that is positive when current flows in the normal direction. Reversing the sense leads produces a negative reading, which may be acceptable if the measurement system handles bipolar signals, but should be verified.
- Use the correct wire gauge: Sense leads carry almost no current, so a small gauge is sufficient (typically 0.5 mm² or 20 AWG). The important characteristic is mechanical robustness and, for long runs, low resistance.
- Keep the sense leads short: Long sense leads pick up more noise and have higher resistance. If the measurement instrument must be far from the shunt, use shielded twisted pair and verify that the lead resistance does not introduce error.
Step 5: Verify the Installation
Before applying load current, verify:
- Continuity: Check that the current path is continuous through the shunt.
- Sense lead continuity: Check that each sense lead is continuous from the shunt terminal to the measurement instrument.
- No short between sense leads: Verify that the two sense leads are not shorted to each other or to ground (unless the measurement system is ground-referenced).
- Polarity: Confirm that the sense lead polarity matches the measurement instrument's expectation.
- Torque: Re-check terminal torque after the first thermal cycle if possible.
Common Installation Mistakes
Mistake 1: Two-Wire Connection on a Precision Shunt
The most common error is connecting the measurement leads to the current terminals instead of the sense terminals. This defeats the purpose of a precision shunt. Always use the dedicated sense terminals.
Mistake 2: Tapping the Sense Signal from a Lug
Some installers tap the sense wire from the cable lug or the terminal stud. This includes the contact resistance of the lug in the measurement. Connect directly to the sense terminal on the shunt body.
Mistake 3: Sense Leads Routed Along Heavy Current Cables
Running the sense leads parallel to and close to the heavy current cables couples electromagnetic noise into the measurement. Route sense leads away from high-current conductors, or use shielded twisted pair.
Mistake 4: Insufficient Terminal Torque
A loose current terminal creates resistance and heat. The heat raises the shunt temperature, causing resistance drift, and the loose connection itself can become a measurement error source if the sense terminal is affected. Torque all terminals to specification.
Mistake 5: Mounting in a Hot Location
Shunts are specified with a temperature coefficient of resistance. Mounting near a heat source or in a sealed enclosure raises the shunt temperature and shifts the resistance. For precision measurements, keep the shunt within its specified temperature range.
Installation Checklist
- Shunt mounted securely, with clearance for heat dissipation
- Current terminals cleaned and cables connected with correct lugs
- Current terminal torque set to specification
- Sense leads connected to dedicated sense terminals (not current terminals)
- Sense lead polarity verified
- Sense leads twisted (and shielded if long or in high-EMI environment)
- Sense leads routed away from heavy current cables
- Continuity and short checks performed
- Measurement verified at a known current if possible
FAQ
What is a Kelvin connection and why does a shunt need one?
A Kelvin (four-wire) connection uses separate terminals for current and voltage measurement. The current flows through the large terminals, while voltage is measured at dedicated sense terminals. This excludes contact resistance at the current terminals from the measurement, which is essential for accuracy because the shunt's voltage signal is very small.
Can I connect the sense leads to the same terminals as the load cables?
Technically yes, but it defeats the accuracy advantage of a precision shunt. The contact resistance of the load terminals and lugs would be included in the measurement, potentially causing errors much larger than the shunt's tolerance. Always use the dedicated sense terminals when available.
Does the shunt have polarity?
The shunt element itself is a resistor and has no polarity. However, the sense terminals have a defined polarity for the measurement: the positive sense terminal is the one that is positive when current flows in the intended direction. Reversing the sense leads gives a negative reading.
How far can the measurement instrument be from the shunt?
The distance depends on the sense lead resistance and the measurement instrument's input impedance. For long runs, use shielded twisted pair and verify that the lead resistance is small compared to the measurement instrument's input impedance. In most BMS and charger applications, keeping the sense leads under a few meters is practical.
What wire gauge should I use for the sense leads?
Sense leads carry almost no current, so a small gauge is sufficient—typically 0.5 mm² (20 AWG) is adequate. The more important considerations are mechanical robustness, twisting to reduce noise, and shielding for long or noisy environments.
How do I verify that my shunt is installed correctly?
Measure the voltage at the sense terminals with a known current flowing. Compare the measured voltage to the expected value (rated mV × actual current / rated current). If the measured voltage is significantly higher than expected, check for a two-wire connection or a poor sense terminal contact. If it is significantly lower, check for a short across the sense terminals or a wiring error.
Conclusion
Correct shunt installation comes down to one principle: keep the current path and the voltage sense path separate. The four-wire Kelvin connection ensures that the measurement reflects only the voltage drop across the shunt element, not the resistance of terminals and lugs. Combined with proper mounting, correct torque, and noise-aware routing of the sense leads, this gives a measurement that is as accurate in the field as it is on the bench.
