■ FEATURES
·2000A Contact Switching capability
·Application：For Electric Control System Of Communication Power Supply、Engineering Machine、Electro motion Forklift、Motor Car and UPS etc.
·Certificate：UL
·ROHS
■ Contactor Data
|
Mode No. |
ZLJM-1000D/1D□ |
|
Contact Form |
1D (SPST-NC) |
|
Contact Material |
Ag Alloy |
|
Contact Rating(at Resistive Load) |
1000A×48V DC（DC-1） |
|
Contact Voltage Drop |
1000A@80mV Max. |
|
Insulation Resistance |
Min. 100MΩ at 500VDC |
|
Dielectric Strength (Between Insulated Electric Parts) |
1000VAC 50 HZ/60 HZ (1 minute) |
|
Pick up time |
Max. 50mSec. |
|
Drop out time |
Max. 50mSec. |
|
Ambient Temperature |
-25℃~+ |
|
Storage Temperature |
|
|
Relative Humidity |
+20%~+90% RH |
|
Shocking of fixed point |
(10～200)HZ、Acceleration≤3.5g |
|
Shocking |
(60～100)Ops./min、Acceleration≤4g |
|
Mechanical Life Time |
100,000 Operations (no load) |
|
Electrical Life Time |
6,000 Operations (at rated load) |
|
Auxiliary contact switching capacities(Resistive load) |
5A /24V DC; 2A/ 48VDC |
|
Auxiliary contact switching capacities(Min. load) |
100mA/5V |
|
Pollution Level |
III |
|
Working Duty |
Continuous |

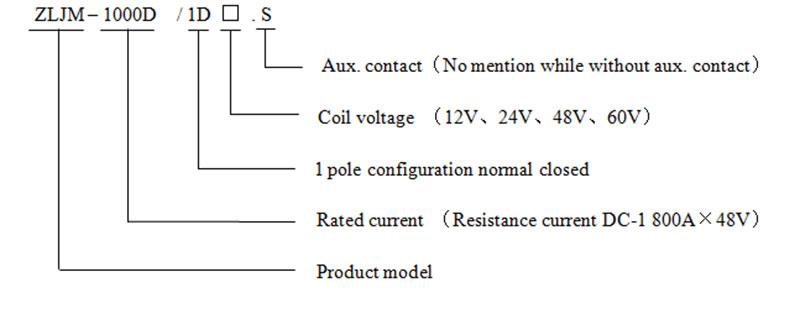

■ Product Model
■ Shape installation and circuit diagram
