DH150-300 High Voltage DC Contactor
Brand
Model
DH300
FOB Port
Ningbo,Shanghai
Terms of Payment
Western Union,T/T Paypal
Update
01/16/2020
DESCRIPTION
■ FEATURES

·300A Contact switch capacity, Small volume;
·A set of bridge type N.O.contacts& a set of N.O. aux contact, contact circuit has  "+", "-" polarity;
·Coil power is very low, coil maintain power Max 4W;
·Application:Telecom equipment、Solar system、 Engineering machinery、Electromobile、Electric vehicle、Charging system、Train、Ships、UPS etc.;
·Comply with the ROHS

■ SPECIFICATION

Product No.

DH300

Contact type

1H(SPST-NO)

Rated load current of contact(Resistive load)

300A(DC-1)

The max switch current

2500A(320VDC)  1cycle

Contact voltage drop

≤80mV@300A

Switching voltage

12~900V DC

Standard pick-up time(including contact bounce)

Max. 40ms.

Contact bounce time

Max. 5ms.

Release time

Max. 10ms.

Vibration(Sinusoid、peak)

(10~500)HZ,≤5g

Shock(11ms,1/2 Sinusoid、peak、pick-up)

≤20g

Operating ambient temperature

-40℃~+85℃

Relative humidity

20%~90% RH

Insulation resistance

Min. 100MΩ @ 500VDC

Dielectric strength

(Between Insulated Electric Parts)

2200VAC 50 Hz/60 Hz (1 minute)

1000VAC 50Hz/60Hz (1 minute) (between aux contacts)

Leak current<1mA

Electrical life

Please refer to diagram of resistance load life

Mechanical life

300,000 cycles

Aux. contact type

1NO

Rated load of aux. contact

2A/24V

Min. load of aux. contact

100mA/8V

Mounted direction

Any direction

Pollution level

Working duty

Continuous

Weight

0.65kg

■ PRODUCT MODEL DEFINE

high voltage dc contactor dh300 china

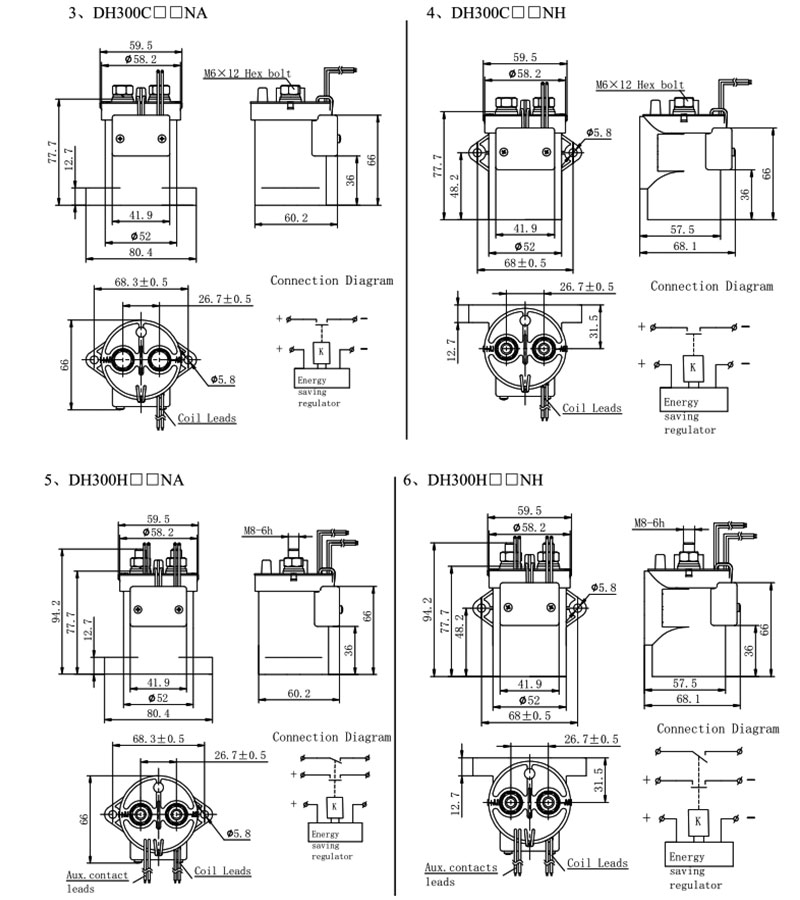

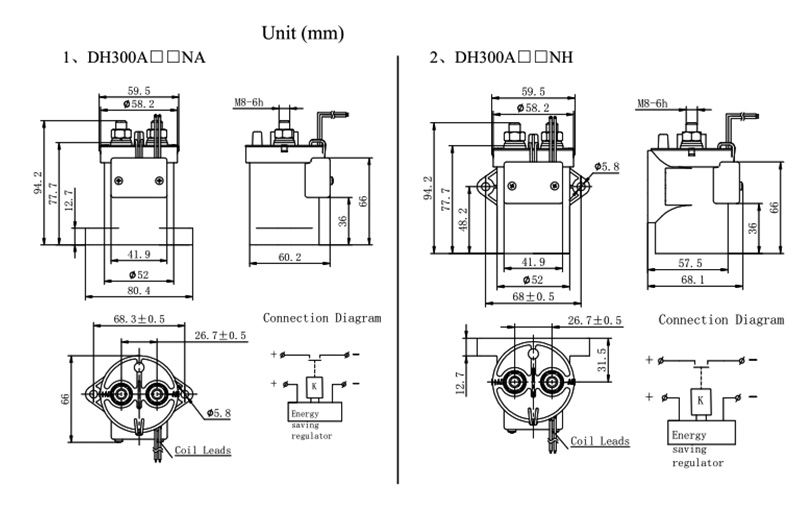

▇ Outline mounting dimension and circuit diagram

high voltage dc contactor dh300 supplier

high voltage dc contactor dh300 manufacturerhigh voltage dc contactor dh300 for salehigh voltage dc contactor dh300 Outline mounting dimension and circuit diagram
