■ FEATURES
500A Contact switch capacity ,small volume;
A set of bridge type N.O. contacts, non-polarity of main contact circuit；Max switching voltage 1500V;
Using ceramic brazing technology, the contact part is sealed design with hydrogen gas, the contact would not oxidize, can quickly switch off the dc high voltage;
Application：Energy storage systems、Electric vehicle、Charging system、UPS etc.；Certificate：CE（IEC60947-4-1）、UL（UL60947-4-1）
|
■ SPECIFICATION |
|||
| Contact Data | Contact form | 1H（SPST-NO） | |
| Rated current | 500A | ||
| Rated voltage | 1500VDC | ||
| Min.load | 1A/12VDC | ||
| Max.switching capacity | 1000A @1500VDC，≥1cycle（only breaking） | ||
| 2000A @1000VDC，≥1cycle（only breaking） | |||
| Contact resistance（Original） | ≤0.3mΩ@20A | ||
| Current carrying capacity | Refer to figure 1 | ||
| Short-circuit carry current | Refer to figure 1 | ||
| Aux.contact Data | Contact form | 1NO | |
| Max.load | 2A@24VDC | ||
| Min.load | 100mA@8VDC | ||
| Contact resistance | ≤250mΩ | ||
| Electrical Endurance | Insulation resistance（@1000VDC） | ≥1000MΩ *1 | |
| （断开触点间、触点与线圈间） | |||
| Dielectric strength | Between the disconnected main contacts | 4000VAC、1min，leak current≤1mA | |
| Between the coil and main contacts | 4000VAC、1min，leak current≤1mA | ||
| Between the aux. and main contacts | 4000VAC、1min，leak current≤1mA | ||
| Between the disconnected aux. contacts | 750VAC、1min，leak current≤1mA | ||
| Pick-up time（Rated volt. at 23℃） | ≤50ms（Not including rebound time） | ||
| Release time（Rated volt. at 23℃） | ≤30ms | ||
| Contact bounce time（Rated volt. at 23℃） | ≤5ms | ||
| Physical Performance | Vibration（sine wave） | 10-500Hz ，5G, malfunction＜10μs | |
| Shock（stability） | 20G，1/2sine，11ms，malfunction＜10μs | ||
| Impact（Strength） | 50G，1/2sine，6ms | ||
| Cycles | Electrical life（Resistive） | Refer to figure 2 | |
| 机械寿命 | |||
| 使用环境、运输、存储环境 | |||
| 分断：100A/1500VDC（纯阻性） | |||
| Capacitive switch on（RC=1ms） | 500A peak@50V：10,000cycles | ||
| Mechanical life | ≥200,000cycles *2 | ||
| Operation Parameter | Ambient temperature | -40~85℃ | |
| Humidity | 5%~85%RH（No icing、condensation） | ||
| Altitude | ≤4000m *3 | ||
| Installation | Arbitrarily | ||
| 重量 | |||
| Weight | 1100g | ||
|
■ Coil Data（23℃） |
|||||
| Coil rated volt. | Pick-up | Release volt. | Max operating volt. | Rated current | Coil power |
| volt. | （±10%） | ||||
| 12VDC | ≤9VDC | ≥1.2VDC | 16VDC | Connect：4.2A | Connect：50W(0.2s) |
| Maintain：0.42A | Maintain：5W | ||||
| 24VDC | ≤18VDC | ≥2.4VDC | 32VDC | Connect：2.1A | Connect：50W(0.2s) |
| Maintain：0.21A | Maintain：5W | ||||

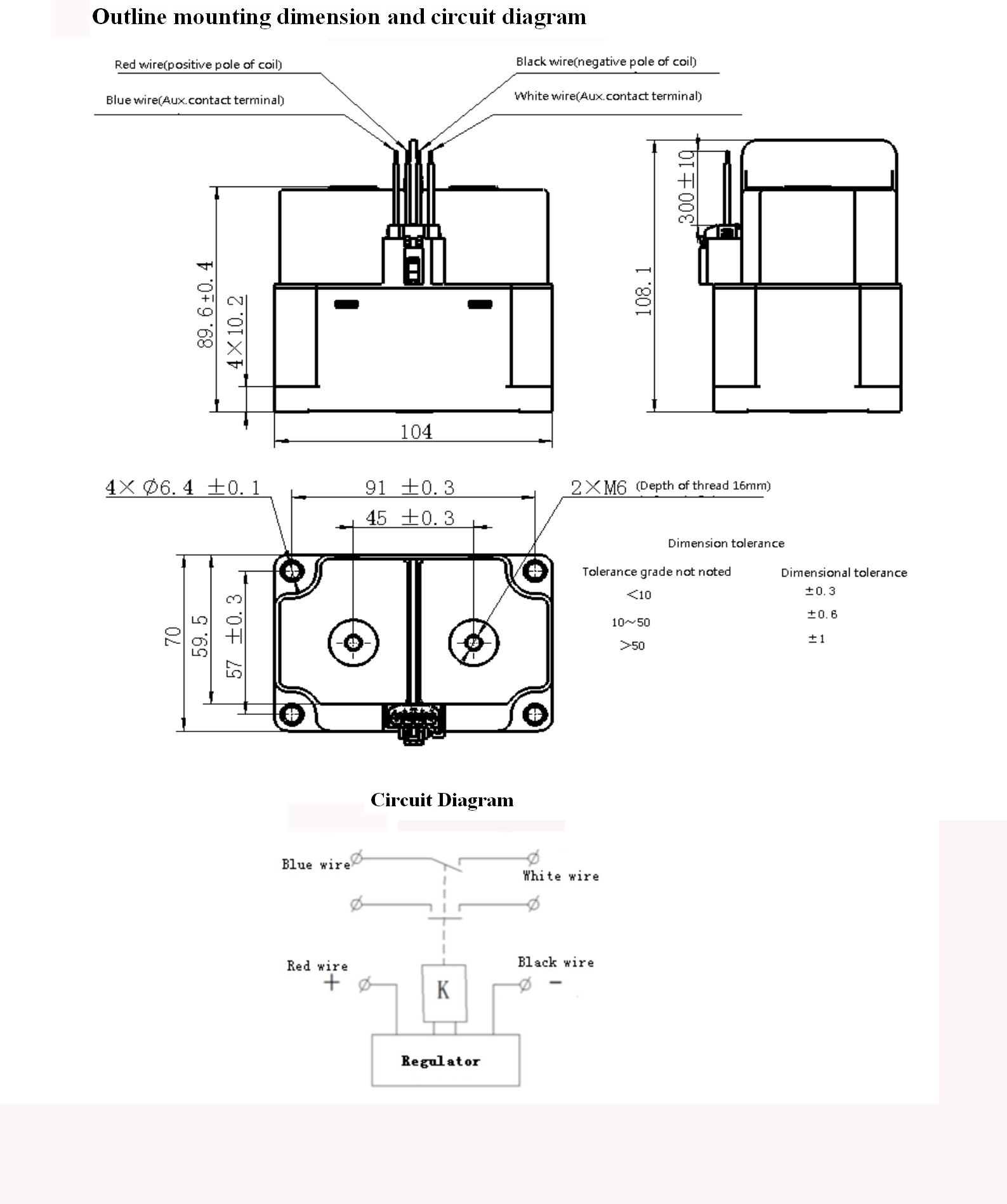

- Ordering Information
|
DHC |
500P |
N |
D |
□ |
C |
A |
(XYZ) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Other codes (XYZ: Customer special requirements; None: standard type) |
|
||||
|
|
|
|
|
|
|
|
|
Install method （A:Horizontal） |
|
||||
|
|
|
|
|
|
|
|
|
Coil lead out method （C: Connector） |
|
||||
|
|
|
|
|
|
|
|
|
Coil voltage （12: 12VDC；24: 24VDC） |
|
||||
|
|
|
|
|
|
|
|
|
Contact form (D: Internal thread normal open type with NO Aux.contact ) |
|
||||
|
|
|
|
|
|
|
|
|
Rated voltage （N: Normal type） |
|
||||
|
|
|
|
|
|
|
|
|
Rated current （500P：500A） |
|
||||
|
|
|
|
|
|
|
|
|
Design code |
|
||||
